SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR

Ask Lasest Price
Brand Name :	LETONE
Model Number :	LT1203
Certification :	USCG/SAE J1527 B2
Price :	10USD-100USD
Payment Terms :	T/T
Supply Ability :	Annual output of 1000,000 meters
Delivery Time :	Within a month

Add to Cart

Product Details
Company Profile

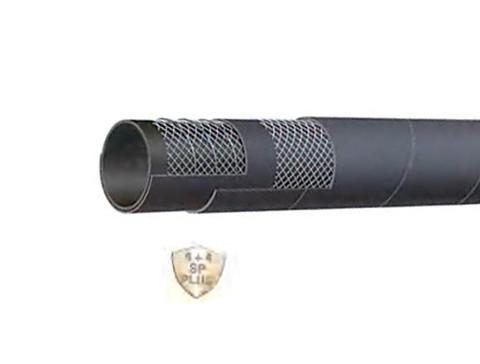

SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR

LT1203 Marine Exhaust Hose USCG/SAE J1527 B2

Quick Detail:

Applications: Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines,Offers maximum flexibility

Description:

Tube: Black NBR - exhaust gas, fuel and fire resistant

Reinforcement: High tensile textile cords and 4 highly flexible steel helix wires

Cover: Black NBR/PVC blend-abrasion, ozone,hydrocarbon and fire resistant

Working pressure: Constant Pressure-5 Bar(75 PSI)

Temperature Range: -20℃(-40°F)to +100℃(+212°F)

Specifications:

Specifications
Series	I.D.(in.)	I.D.(mm)	O.D. (in.)	O.D. (mm)	Max.W.P.(psi)	Vacuum HG (in.)	Min.B.R.(mm)	W. (kg/m)
LT1203-062	5/8	16	1.02	26	75	30	2	0.54
LT1203-075	3/4	19	1.18	30	75	30	21/4	0.65
LT1203-087	7/8	22	1.26	32	75	30	23/4	0.74
LT1203-100	1	25	1.38	35	75	30	3	0.83
LT1203-112	11/8	28	1.50	38	75	30	31/4	0.89
LT1203-125	11/4	32	1.65	42	75	30	33/4	0.97
LT1203-137	13/8	35	1.77	45	75	30	41/4	1.04
LT1203-150	11/2	38	1.89	48	75	30	41/2	1.13
LT1203-162	15/8	42	2.17	52	75	30	5	1.21
LT1203-175	13/4	45	2.16	55	75	30	51/4	1.29
LT1203-189	17/8	48	2.28	58	75	30	53/4	1.35
LT1203-200	2	51	2.40	61	75	30	6	1.47
LT1203-225	21/4	57	2.64	67	75	30	63/4	1.62
LT1203-238	23/8	60	2.76	70	75	27	7	1.86
LT1203-250	21/2	63	2.87	73	75	27	71/2	1.95
LT1203-275	23/4	70	3.11	80	75	27	81/4	2.10
LT1203-300	3	76	3.39	86	75	27	9	2.28
LT1203-350	31/2	90	3.94	100	75	27	101/2	2.84
LT1203-400	4	102	4.41	112	75	27	12	3.15
LT1203-450	41/2	115	5.00	127	75	27	131/2	4.05
LT1203-500	5	127	5.55	141	75	24	15	4.52

Competitive Advantage:

Product Tags:

SAE J1527 B2 Corrugated Marine Wet Exhaust Hose

NBR Corrugated Marine Wet Exhaust Hose

SAE J1527 B2 marine exhaust tubing

SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
