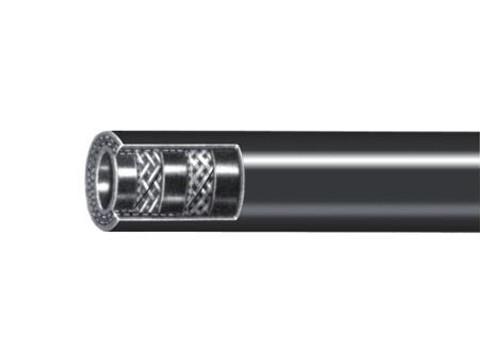

SAE 100R4 wire inserted low pressure hydraulic hose is frequently
applied to suction & return line, anti-static delivery line, and
vacuum applications for petroleum-based and water-based hydraulic
fluids. It is constructed with an inner tube of oil-resistant
synthetic rubber, a reinforcement consisting of a ply, or plies, of
woven or braided textile fibers with a suitable spiral of body
wire, and an oil and weather resistant synthetic rubber cover.
Construction: This hose shall consist of an inner tube of oil
resistant synthetic rubber, a reinforcement consisting of a ply or
plies of woven or braided textile fibers with a suitable spiral of
body steel wire, together with an oil and weather resistant
synthetic rubber cover.
Applications: Suitable for conveying petroleum-based hydraulic oil, lubricating
oil, gasoline, fuel oil, water and air, etc
Tube: Black oil-resistant synthetic rubber
Reinforcement: One or two layers of braided fiber and one layer of spiral steel
wire
Cover: Black oil-resistant, weather-resistant, wear-resistant synthetic
rubber
Temperature Range: -40 °C to + 100℃ (-40°F to + 212°F)
| SIZE(Dash) | SIZE(in.) | I.D.(mm) | O.D.(mm) | Max.W.P. | Min.B.R. |
| Min | Max | Max | (MPa) | (MPa) |
| 12 | 3/4 | 18.2 | 19.8 | 34.9 | 2.1 | 8.4 |
| 16 | 1 | 24.6 | 26.2 | 41.3 | 1.7 | 7 |
| 20 | 1 1/4 | 30.6 | 33.0 | 50.8 | 1.4 | 5.6 |
| 24 | 1 1/2 | 36.9 | 39.3 | 57.2 | 1.05 | 4.2 |
| 32 | 2 | 49.2 | 52.4 | 69.9 | 0.7 | 2.8 |
| 40 | 2 1/2 | 61.9 | 65.1 | 82.6 | 0.4 | 1.7 |
| 48 | 3 | 74.6 | 77.8 | 95.3 | 0.4 | 1.6 |
| 56 | 3 1/2 | 87.3 | 90.5 | 107.9 | 0.3 | 1.3 |
| 64 | 4 | 100.0 | 103.2 | 120.7 | 0.25 | 1.0 |
