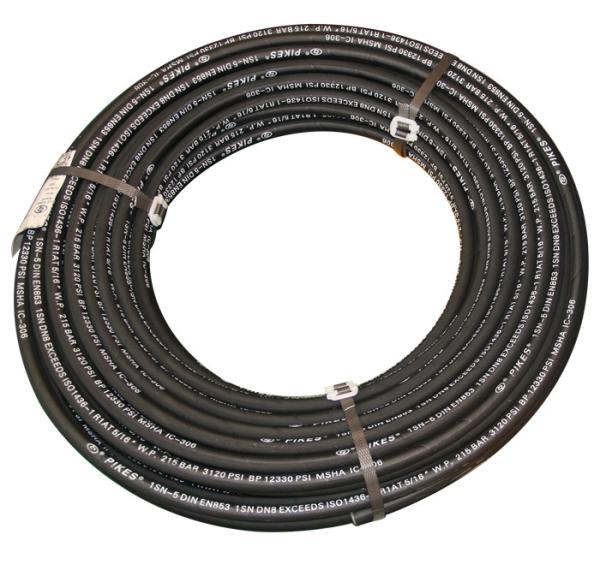

This hose is suitable for hydraulic fluids on mineral oil and
synthetic oil basis (HL, HLP, HLPD, HVLP), oil-water-emulsions
(HFAE, HFAS, HFB), water-glycol liquids (HFC), vegetable and
mineral oil based lubricants, cooling water, and compressed air.
Also generally suitable for biologically degradable hydraulic
liquids (HETG, HEPG, HEES) however limited by fluid additives.
Not suitable for hydraulic fluids on phosphate ester basis (HFD).
Application: Suitable for using oil base hydraulic oil, is suitable for the
harsh conditions of high temperature and medium pressure hose
Tube : The hose consists of a heat-resistant synthetic rubber inner layer
Reinforcement: Four-layer steel wire winding layer
Cover: Oil-resistant and weather resistant synthetic rubber The outer
rubber layer is composed
Temperature range : 40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F)
Standard: Hose execution SAE100R12 standard, GB/T10544-2013 standard
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. |
| Min | Max | Max | (MPa) | (MPa) | (mm) |
| 10 | 3/8 | 9.3 | 10.1 | 21.0 | 28 | 112 | 125 |
| 13 | 1/2 | 12.3 | 13.5 | 24.6 | 28 | 112 | 180 |
| 16 | 5/8 | 15.5 | 16.7 | 28.2 | 28 | 112 | 200 |
| 19 | 3/4 | 18.6 | 19.8 | 31.5 | 28 | 112 | 240 |
| 25 | 1 | 25.0 | 26.4 | 39.2 | 28 | 112 | 300 |
| 32 | 1 1/4 | 31.4 | 33.0 | 48.6 | 21 | 84 | 420 |
| 38 | 1 1/2 | 37.7 | 39.3 | 55.0 | 17.5 | 70 | 500 |
| 51 | 2 | 50.8 | 52.0 | 68.3 | 17.5 | 70 | 640 |
