A. Regarding the hose and fittings assembly shall consider the
following aspects;
Working environment; environment temperature, weather condition and
other external contact objects.
Conveying medium: liquid, gas, paste, powder, or mixture of several
media;
Medium transmission mode: positive pressure transmission, negative
pressure suction;
Working conditions: pressure, temperature and flow of conveying
medium; Pulse or motion frequency; Chemical properties of the
medium;
B. Hoses and hose assemblies have limited service life. Factors
leading to reduced service life include:
The bending radius of the hose installation is too small, and the
hose body is torsional deformation;
Hose installation free length or movement length is not enough,
squeezed, rubbed, stretched and twisted by external forces;
The working temperature or pressure of the hose exceeds the
designed working temperature or design working pressure;
The hose connection does not meet the standard, and the quality of
the buckle is unqualified;
Poor operating conditions, hose outer rubber layer is polluted and
corroded (such as spraying paint), mechanical damage, etc.;

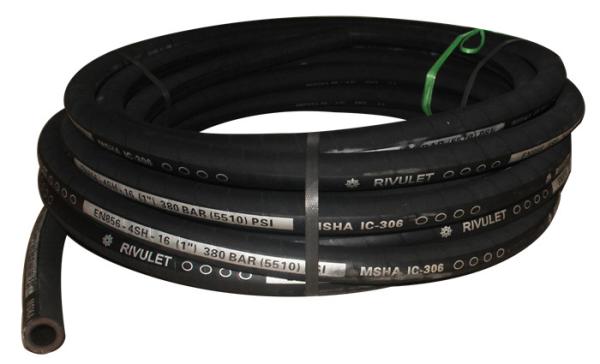

Application: Suitable for conveying mineral oil, water-based hydraulic oil or
water by hydraulic system such as coal mine hydraulic support and
comprehensive coal mining unit
Tube: black, oil resistant sythentic rubber
Reinforcement: 4 layers of spiraled high tensile steel wire
Cover: weather resistant sythentic rubber
Temperature Range: -40℃~+100℃ (-40°F~+212°F)
Standard: EN856-4SP；GB/T10544-2013
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. |
| Min | Max | Max | (MPa) | (MPa) | (mm) |
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
