Fibre Reinforced Hose is also called PVC fiber hose, clear braided hose, PVC braided
hose, fiber hose, PVC fiber reinforced hose etc. Made by high
toughness PVC material and strengthen polyester thread. light
weight, flexible, elastic, portable and excellent adaptability;
Acid-proof, alkali-proof, anti-UV, long service time. Which is an
ideal hose designed for transfer in any industrial application.
Characteristics
It is flexible, transparent, durable, non-toxic, without odor,
anti-erosion and adaptable to high pressure condition.
By adding colorful symbol lines on the surface of the hose, it
looks more beautiful.
Applications: It is suitable for conveying petroleum-based hydraulic oil and
water-based hydraulic oil. It can be used as a lubrication line and
a blowout preventer control line. It is widely used in hydraulic
elevators and agricultural and construction machinery

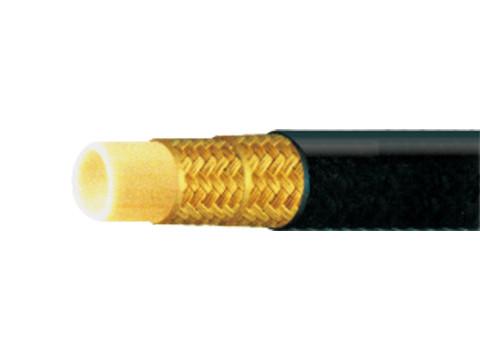

Tube: nylon
Reinforcement: One or two layers of synthetic fiber braid
Outer Layer: Oil-resistant, aging-resistant, weather-resistant black
polyurethane
Temperature Range: -40℃ ~ +100℃(-40℉ ~ +212℉)
| I.D. | O.D. | W.P. | W.P. | MIN.B.P. | W.T. |
| Dash | In. | mm | mm | MPa | psi | MPa | psi | mm | g/m |
| -3 | 3/16-1 | 4.8 | 10.3 | 21 | 3045 | 84 | 12180 | 35 | 65 |
| -4 | 1/4-1 | 6.3 | 12.7 | 22.5 | 3260 | 90 | 13050 | 50 | 80 |
| -5 | 5/16-1 | 7.9 | 14.3 | 19 | 2755 | 76 | 11020 | 50 | 125 |
| -6 | 3/8-1 | 9.5 | 15.9 | 17.5 | 2540 | 70 | 10160 | 80 | 140 |
| -8 | 1/2-1 | 12.7 | 19.8 | 14 | 2030 | 56 | 8120 | 100 | 200 |
| -3 | 3/16-2 | 4.8 | 10.3 | 25 | 3620 | 100 | 14480 | 55 | 70 |
| -4 | 1/4-2 | 6.3 | 13.3 | 27.4 | 3980 | 109.6 | 15920 | 75 | 125 |
| -5 | 5/16-2 | 7.9 | 15 | 26 | 3770 | 104 | 15080 | 85 | 150 |
| -6 | 3/8-2 | 9.5 | 18 | 25 | 3620 | 100 | 14480 | 100 | 210 |
| -8 | 1/2-2 | 12.7 | 21.6 | 21 | 3040 | 84 | 12160 | 140 | 260 |
| -10 | 5/8-2 | 15.9 | 23.6 | 16 | 2320 | 64 | 9280 | 165 | 295 |
| -12 | 3/4-2 | 19 | 26.4 | 14 | 2030 | 56 | 8120 | 195 | 315 |
| -16 | 1-2 | 25.4 | 34 | 10.5 | 1520 | 42 | 6080 | 256 | 450 |
