    PTFE Multifunctional API Q1 crude oil hose for Conveying

    Ask Lasest Price
    Brand Name : LETONE
    Model Number : LT304 PTFE multifunctional crude oil conveying hose
    Certification : API PTFE
    Price : 100USD-1000USD
    Payment Terms : T/T
    Supply Ability : Annual output of 10,000 meters
    Delivery Time : Within a month
    • Product Details
    • Company Profile

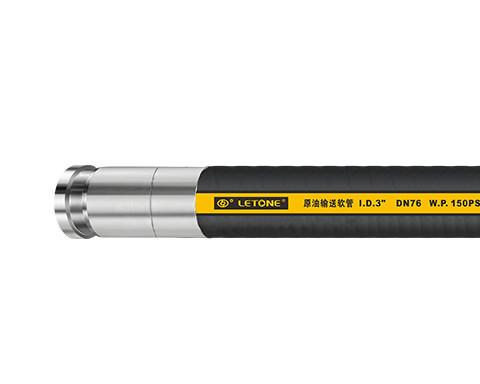

    PTFE Multifunctional API Q1 crude oil hose for Conveying

    LT304 PTFE multifunctional crude oil conveying hose
    Letone oil drilling hose has passed the American Petroleum Institute API Q1 quality management system certification (API 7K & API 16C & API 16D), API 7K, API 16C product certification, and American Bureau of Shipping ABS product design approval (API 7K & API 16C) ), ABS factory license, ABS form approval, etc. The product has the characteristics of high pressure, equal diameter, light weight, etc., and is widely used in land and offshore oil drilling projects.
    Application:hydraulic control line for remotely control the blowout preventer (BOP) at high pressure
    Tube:NBR
    Reinforcement:4 layers of high tensile super flexible spiral steel wire
    Cover:high temperature and fire resistant synthetic rubber
    Protective Layer:stainless steel armor
    Temperature Range:-45°C~+100°C (-49°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
    Standard:API Spec. 16D | Lloyds
    Parameter
    Hose inner diameterOuter diameter of hose O.D.Maximum working pressure MaxRec.WPMin.B.RWeightWeigt
    in.mmin.mmPsimmkg/m
    2512.4653503811.25
    21/2632.95753505081.79
    3763.46883505082.14
    31/2904.021023506352.71
    41024.491143507623.02
    51275.551413508894.73
    61526.5416635012705.97
